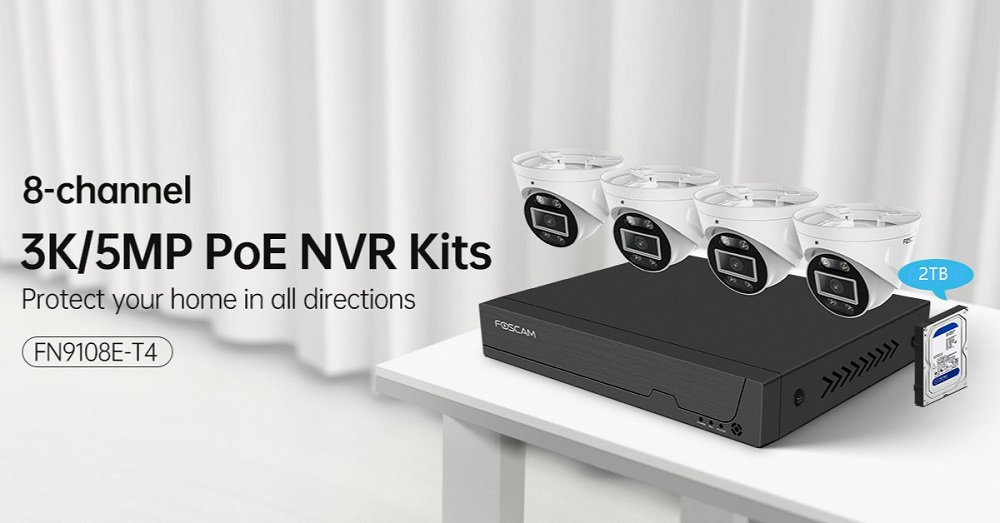

Foscam PoE Kit FN9108E-T4-2T

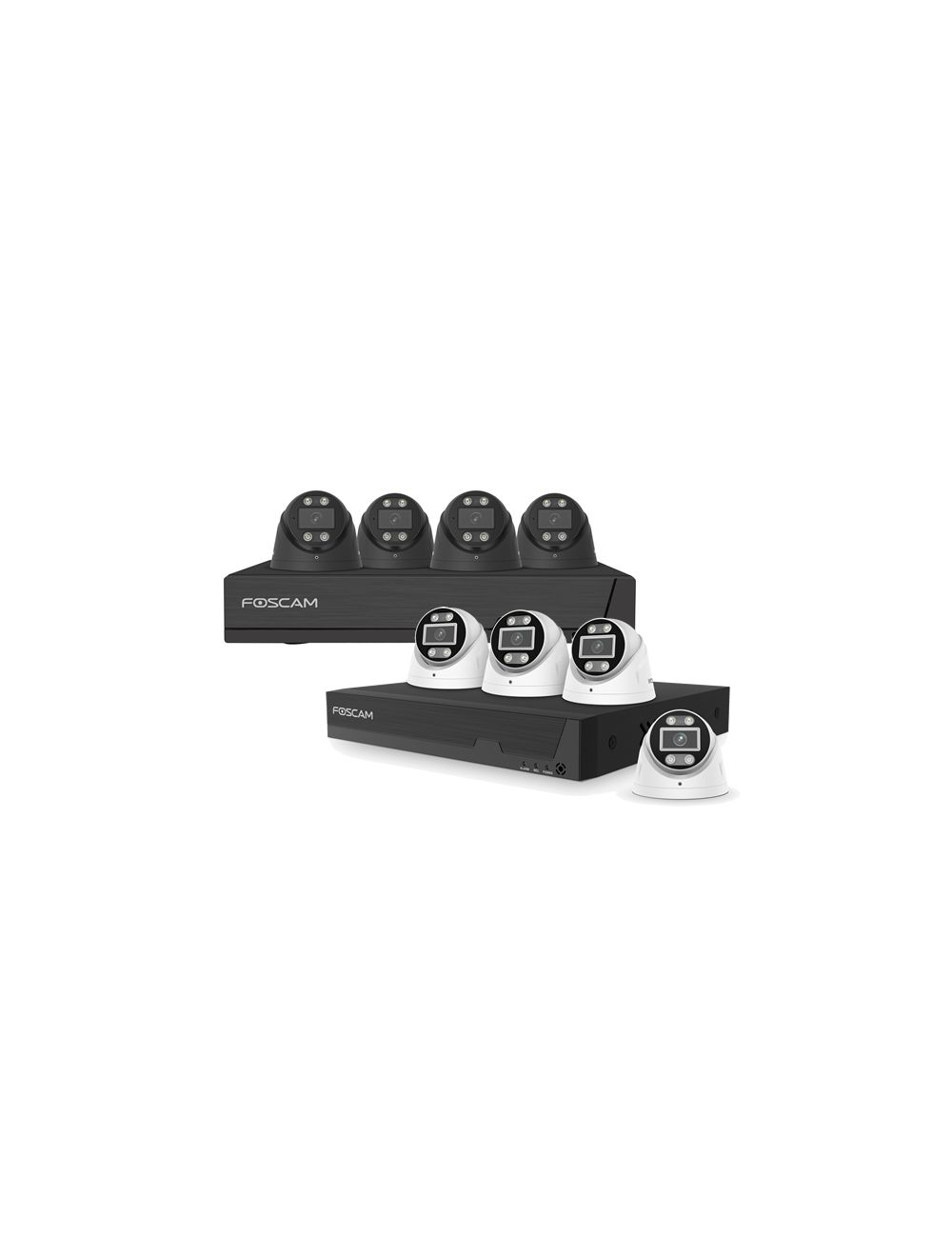

5 MP PoE set consists of NVR FN9108HE and 4x camera Foscam T5EP
FN9108E-T4-2T
Protect your home in all directions!
Centralized management
Support viewing, video playback, 7*24 hours non-stop video recording, and keeping an eye on every corner of your home.
Complete protection
Get the whole system for complete protection. After being powered, four cameras will connect to the NVR in the same system automatically and provide your home with complete protection.
Easy installation
With Power over Ethernet connection, each DIY user can use a single network cable to connect each POE camera to Foscam NVR for both power supply and video recording. Just hook each camera up with the NVR and the whole security system can be seen day and night.
Human/Vehicle detection
Say goodbye to the unwanted alarms triggered by moving branches or flying bugs. With advanced human/vehicle detection, the camera identifies true threats in the light of cutting-edge detection algorithms, giving you the utmost peace and relief.
Other features
- Free use of Foscam app or VMS
- Supports up to 16TB HDD
- Plug&Play
- Sound & light alarm
- It supports video stream compression H.264+ Codec, which has the advantages of storage and bandwidth savings with greater efficiency and achieves high-quality video preview and recording in low-bit rate.
SKU | FN9108E-T4-2T-WB |
---|---|
Brand | Foscam |
NVR | Model | FN9108HE |
Video input | IP video input | 8 channels QHD IP camera input |
Video output | HDMI Output | 1x HDMI |
VGA Output | 1x VGA | |
Display resolution | 3840x2160, 2560x1440, 1920x1080, 1440x900, 1280x1024, 1280x800, 1280x720, 1024x768 | |
Recording | Recording resolution | Up to 5MP per channel (8-ch@5MP) |
Record mode | Time scheduled / Motion detect | |
Compression format | H.264/H.264+ | |
Playback | Synchronous playback | 8 channels synchronous playback |
Playback mode | Pause / Stop / Slow / Fast / Frame play | |
Network | PoE Standard | IEEE 802.3at/af |
Network protocol | IP, TCP, UDP, SMTP, DHCP, RTSP | |
HDD | HDD | 2TB pre-installed HDD |
Capacity | Support up to 16TB | |
External interface | Network interface | 1x 10/100 Mbps RJ45 port |
USB interface | 2x USB2.0 interface for mouse and external storage | |
Button | 1x power on/off button, 1x Reset button | |
System requirements | OS | Windows (Foscam VMS), Mac OS (Foscam VMS), Android (Foscam app), iOS (Foscam app) |
Smartphone | iOS, Android, 3G/4G/5G smartphones | |
Language | Language | 20 languages |
Physical & environmental | Power supply | DC 48V/2A |
Dimension | 255x238x50 mm | |
Net weight | 880g | |
Operating temperature | 0°C ~ 50°C | |
Operating humidity | 20% ~ 85% (non-condensing) | |
Storage temperature | -20°C ~ 60°C | |
Storage humidityluchtvochtigheid | 0% ~ 90% (non-condensing) |
Camera | Model | T5EP | ||||
Image Sensor | Sensor | HD Color CMOS Sensor | ||||
Display resolution | 5MP (3072*1728) | |||||
Min. illumination | 0 Lux (with IR illuminator) | |||||
Lens | Lens Type | f:4mm,F2.1 | ||||
Angle of view | Horizontal: 78°; Diagonal : 94°; Vertical: 43.6° | |||||
Night mode | Manual and automatic modes,when the white light is on, the night vision image is colored | |||||
Night vision | 20m | |||||
System requirements | OS | Microsoft Windows (Foscam VMS), Mac OS (Foscam VMS), Android (Foscam app), IOS (Foscam app) | ||||
Smartphone | IOS,Android,3G/4G/5G Smartphones | |||||
Connectivity | 802.3af PoE | √ | ||||
Ethernet | RJ45 | |||||
Audio | Input/Output | Built-in mic and speaker,support full duplex 2-way Audio | ||||
Audio compression | PCM/AAC | |||||
Siren | Support max 100dB alarm siren | |||||
Other features | Video format | H.264+/H.264 | ||||
Multi streams | Dual stream | |||||
Motion detection | √ | |||||
Human detection | √ | |||||
Vehicle detection | √ | |||||
Day/night | √ | |||||
WDR | √ | |||||
Zoom | 6x digital | |||||
Spotlight | √ | |||||
Physical & environmental | Power supply | Powered by PoE NVR | ||||
Power consumption | 5 Watt (Max.) | |||||
Net weight | 342g | |||||
Waterproof | IP66 | |||||
Operating temperature | -20°C~ 50°C | |||||
Operating humidity | 10% ~ 80% non condensing | |||||
Storage temperature | -20°C ~ 60°C | |||||
Storage humidity | 0% ~ 90% non condensing | |||||
Certification | FCC, CE, RoHS, IP66 |
In the box
- 1x 8-channel NVR
- 4x IP camera
- 1x USB mouse
- 1x pre-installed 2TB HDD
- 1x power adapter for NVR
- 1x 1.5m ethernet cable
- 4x 18m ethernet cable
- 1x 1.8m HDMI cable
- 4x screw kit
- 4x waterproof lid
- 4x mounting template
- 1x manual
- 5x warning card
