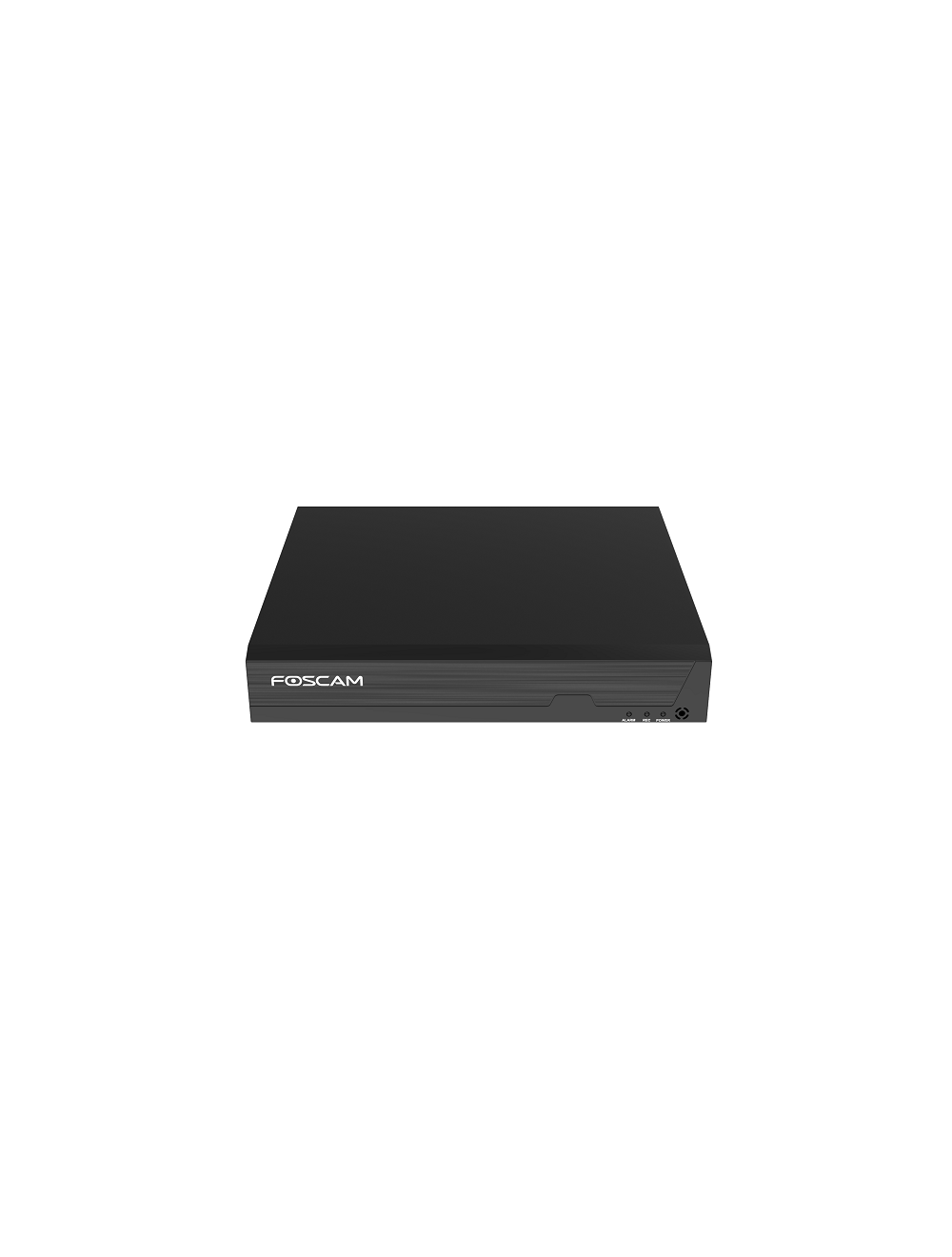

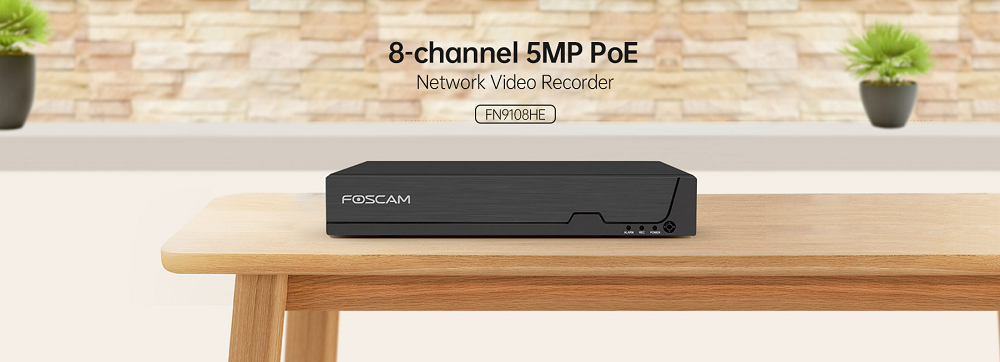

Foscam FN9108HE, 8-channel 5MP PoE NVR
Motion detection, Power over Ethernet, support up to 16TB HDD, Plug&Play
SKU
FN9108HE
Foscam FN9108HE

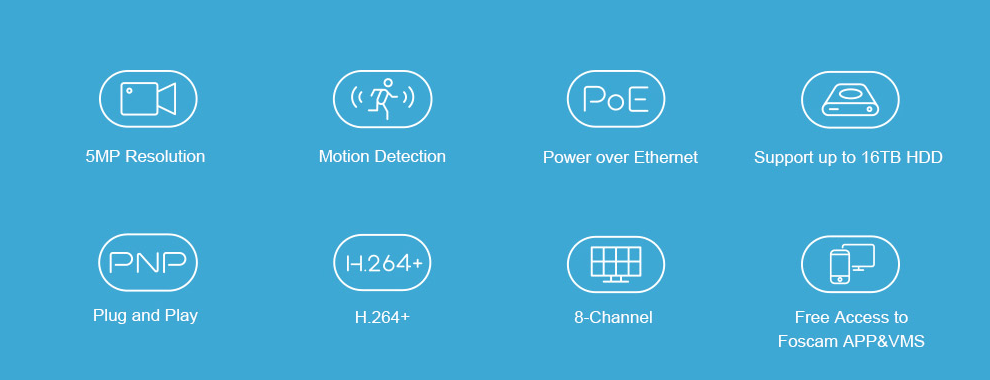

- Supports 8-channel 5 MP; Foscam VMS and FN9108HE NVR will cooperate to get a better experience
- More efficient streaming, supports video stream compression H.264+ Codec which has advantages of storage and bandwidth savings. Greater efficiency, high quality video preview and recording in low-bit rate
- Never miss a moment. Supports up to 16TB hard disk (not included), for 24/7 continuous recording. Scheduled or motion-triggered recording allows you to record even longer
- Cameras and NVR connect automatically
- Motion detection
- Power over Ethernet, easy installation
| SKU | FN9108HE |
|---|---|
| Brand | Foscam |
| EANcode | 6954836025970 |
| NVR | Model | FN9108HE |
| Video input | IP video input | 8 channel QHD IP camera input |
| Video output | HDMI Output | 1x HDMI |
| VGA Output | 1x VGA | |
| Display resolution | 3840x2160, 2560x1440, 1920x1080, 1440x900, 1280x1024, 1280x800, 1280x720, 1024x768 | |
| Recording | Recording resolution | Up to 5MP per channel (8-ch@5MP) |
| Record mode | Time scheduled / Motion detection | |
| Compression format | H.264/H.264+ | |
| Playback | Synchronous playback | 8 channels synchronous video playback |
| Playback mode | Pause / Stop / Slow / Fast / Frame play | |
| Network | Ethernet | One 10/100 Mbps RJ45 port |
| PoE Standard | IEEE 802.3at/af | |
| Netwerk protocol | IP, TCP, UDP, SMTP, DHCP, RTSP | |
| HDD | Capacity | Up to 16TB |
| External interface | Network interface | 1x 10/100 Mbps RJ45 port |
| USB interface | 2x USB2.0 interface for mouse & external storage | |
| Button | 1x Power om/off button, 1x Reset button | |
| System requirements | Operating System | Windows (Foscam VMS), Mac OS (Foscam VMS), Android (Foscam app), iOS (Foscam app) |
| Smartphone | iOS, Android, 3G/4G/5G smartphones | |
| Language | Language | 20 languages |
| Physical & environmental | Power supply | DC 48V/2A |
| Dimension | 255x238x50 mm | |
| Weight | 880g | |
| Operating temperature | 0°C ~ 50°C | |
| Operating humidity | 20% ~ 85% (non-condensing) | |
| Storage temperature | -20°C ~ 60°C | |
| Storage humidity | 0% ~ 90% (non-condensing) |
