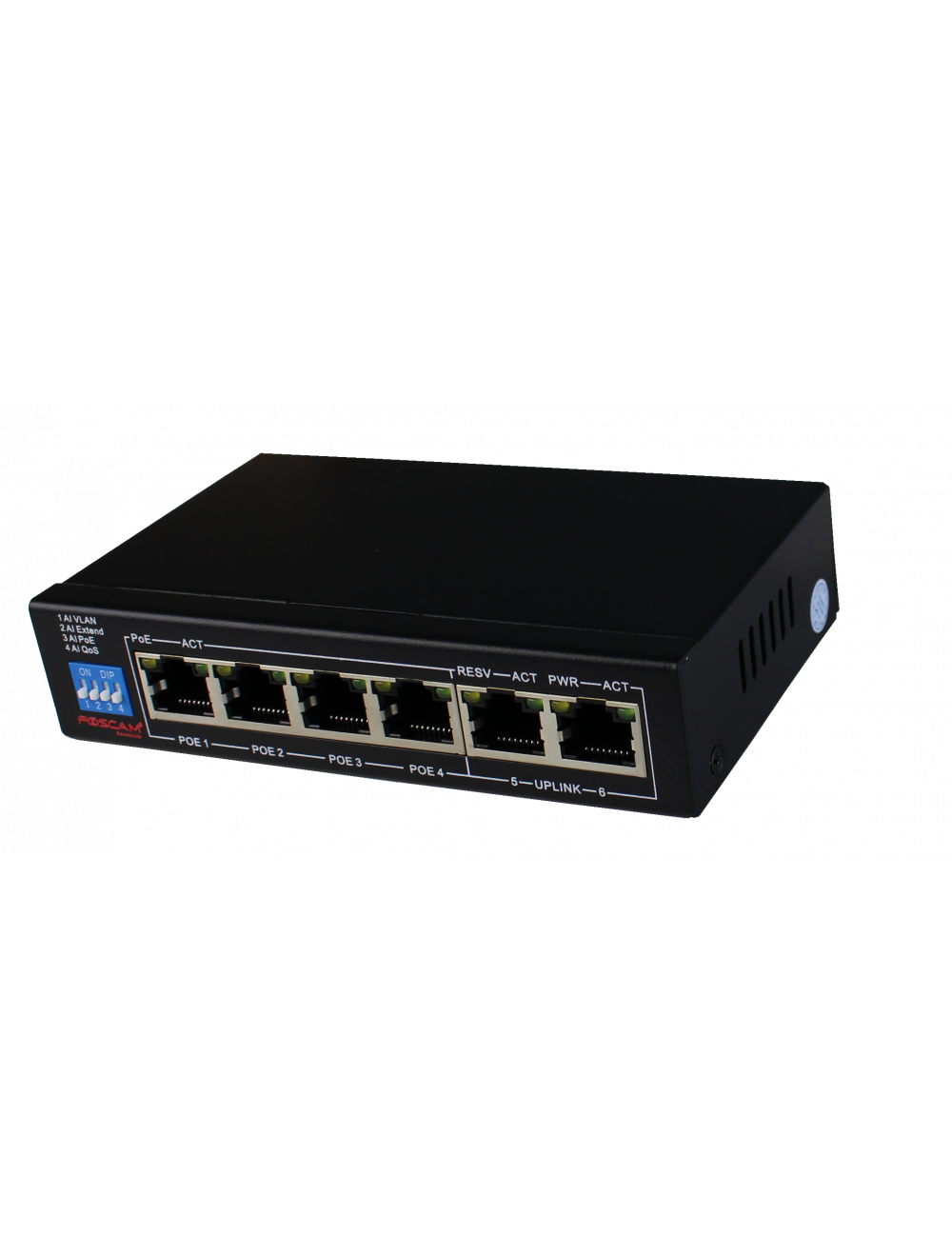

Foscam PS106G - 4+2-port Gigabit PoE switch

PoE switch with 4+2 ports

SKU

PS106G

Details

Foscam PS106G:

4x 1000Mbps RJ45 port (PoE available)
2x 1000Mbps uplink port
5 working modes:

Standard switching mode. All ports communicate freely
VLAN mode. Avoid the internet storm and enhance the network ability
Extend mode. Extend 250m transmission
QoS mode. Video data first, more fluent transmission
PoE mode. Automatic self checking, reboot the device while find it fake dead

Support IEEE802.3af/at standard protocol, single port maximum PoE output power is 30W
Power supply: 96W

PS106G can be used for any 10/100/1000Mbps link and standard IEEE 802.3af/at power supply products. Advanced auto-sensing algorithm gives power to 802.3af/at end devices. In addition, the PoE switch automatically determines PoE requirements, speed, duplex. Easy to operate and reliable.

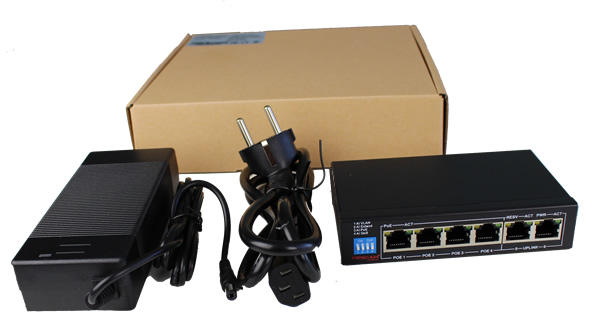

In the box:

PS106G

More Information

More Information
SKU	PS106G
Brand	Foscam
EANcode	8719992543106

Technical Specifications

Technology
Network ports	4x 10/100/1000Mbps PoE RJ45 port (port 1~ port 4) 2x 10/100/1000Mbps RJ45 port uplink (port 5~port 6)
Network protocol	IEEE802.3i, IEEE802.3u, IEEE802.3x, IEEE802.3af, IEEE802.3at, IEEE802.3ab
Transfer rate	1000Mbps full duplex
Power	Max power for single port: 30W External power adapter: 96W
Performance	Bandwidth 12Gbps
Mechanical
Dimensions	125 x 75 x 27mm (L x W x H)
Weight	0.500 KG
Interface
Port	4 PoE Ports + 2 Uplink Ethernet Ports
Environment
Operating temperature	0° ~ 40° C
Operating humidity	10% - 90% non-condensing

Safety regulation	CE, RoHS, FCC
