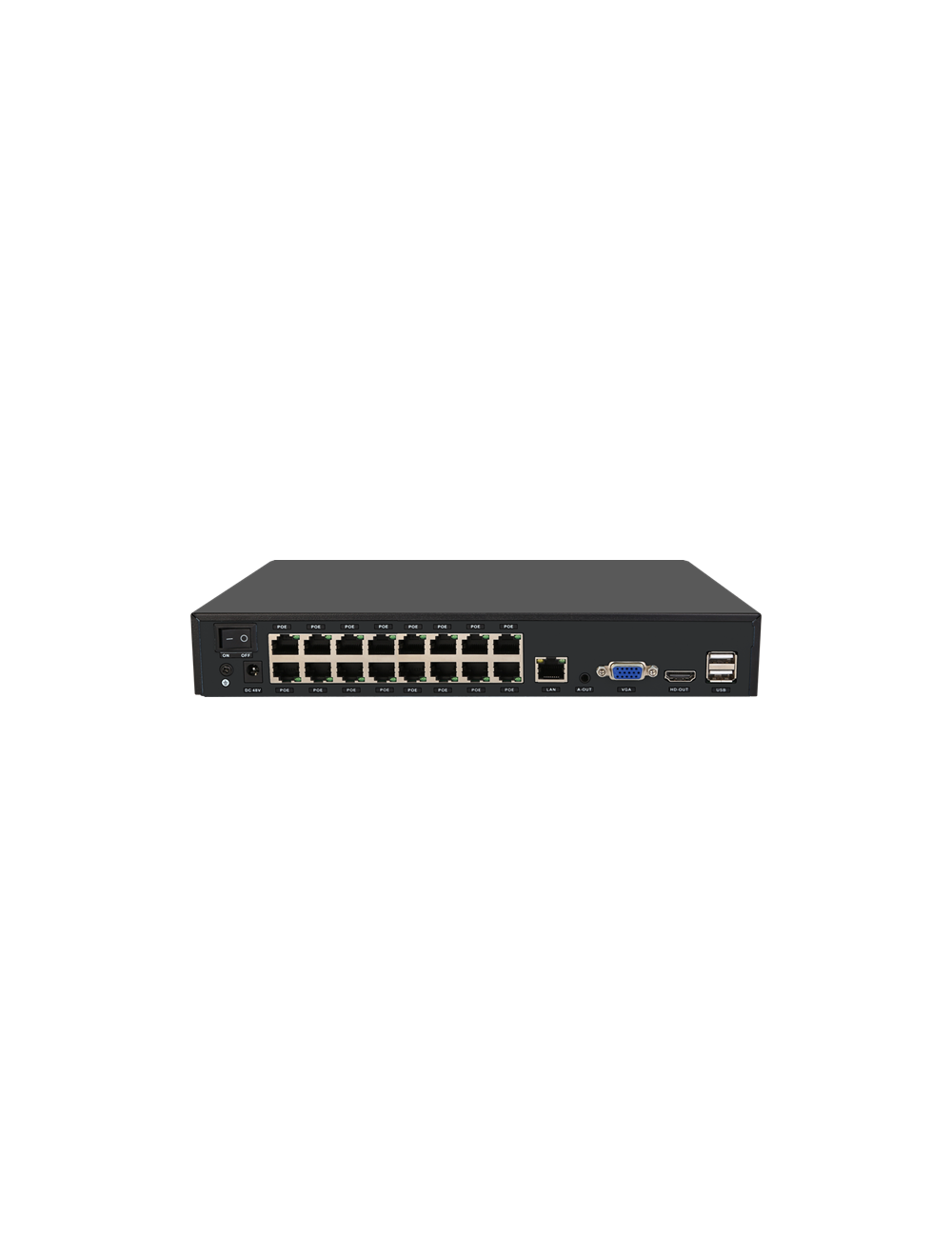

Foscam FNA216HE, 16-ch 4K/8MP PoE NVR

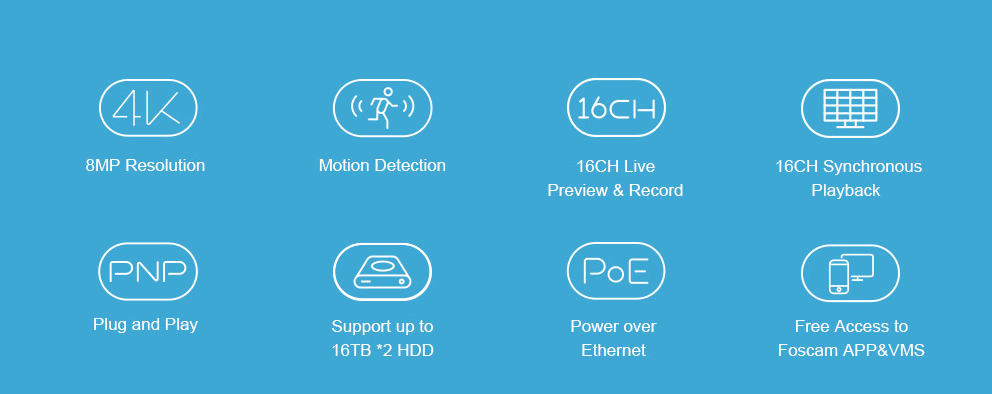

Motion detection, Power over Ethernet, support up to 16TB HDD, Plug&Play

SKU

FNA216HE

Foscam FNA216HE

Supports 16-channel@8MP; Foscam VMS and FNA216HE NVR will cooperate to get a better experience
More efficient streaming, supports video stream compression H.264+ Codec which has advantages of storage and bandwidth savings. Greater efficiency, high quality video preview and recording in low-bit rate

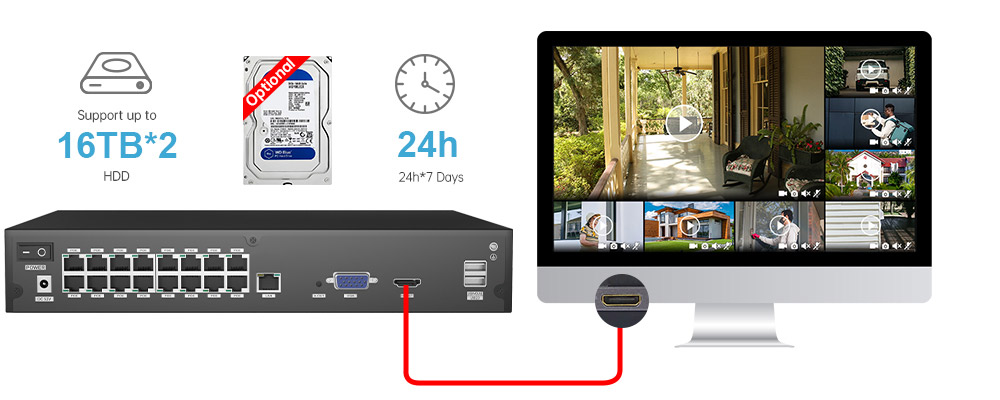

Never miss a moment. Supports up to 2x16TB hard disk (not included), for 24/7 continuous recording. Scheduled or motion-triggered recording allows you to record even longer

The table below shows how long the Foscam NVR can record 24/7 under different HDD capacities for reference

NVR	Model	FNA216HE
Video input	IP video input	16 channel UHD IP camera input
Video output	HDMI Output	1x HDMI
	VGA Output	1x VGA
	Display resolution	3840x2160, 2560x1440, 1920x1080, 1440x900, 1280x1024, 1280x800, 1280x720, 1024x768
Recording	Recording resolution	Up to 8MP per channel (16-ch@8MP)
	Recording mode	Time scheduled / Motion detect
	Compression format	H.264/H.264+
Playback	Synchronous playback	16 channel synchronous playback
Playback	Playback mode	Pause / Stop / Slow / Fast / Frame play
Network	PoE Standard	IEEE 802.3at/af
Network	Network protocol	IP, TCP, UDP, SMTP, DHCP, RTSP
HDD	Capacity	Up to 16 TB *2
External interface	Network interface	1x 10/100/1000 Mbps RJ45 port
	USB interface	2x USB2.0 interface for mouse and external storage
	Button	1x power on/off button, 1x Reset button
Software	Operating System	Windows (Foscam VMS), Mac OS (Foscam VMS), Android (Foscam app), iOS (Foscam app)
Software	Smartphone	iOS, Android, 3G/4G/5G smartphones
Language	Languages	20

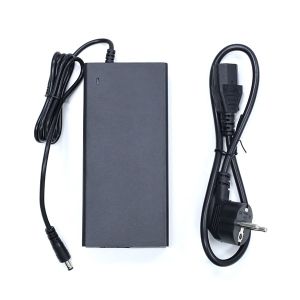

Physical & environmental	Power supply	DC 52V/4A
	Dimension	325x242x50 mm
	Weight	1319g
	Operating temperature	0°C ~ 50°C
	Operating humidity	20% ~ 85% (non-condensing)
	Storage temperature	-20°C ~ 60°C
	Storage humidity	0% ~ 90% (non-condensing)
