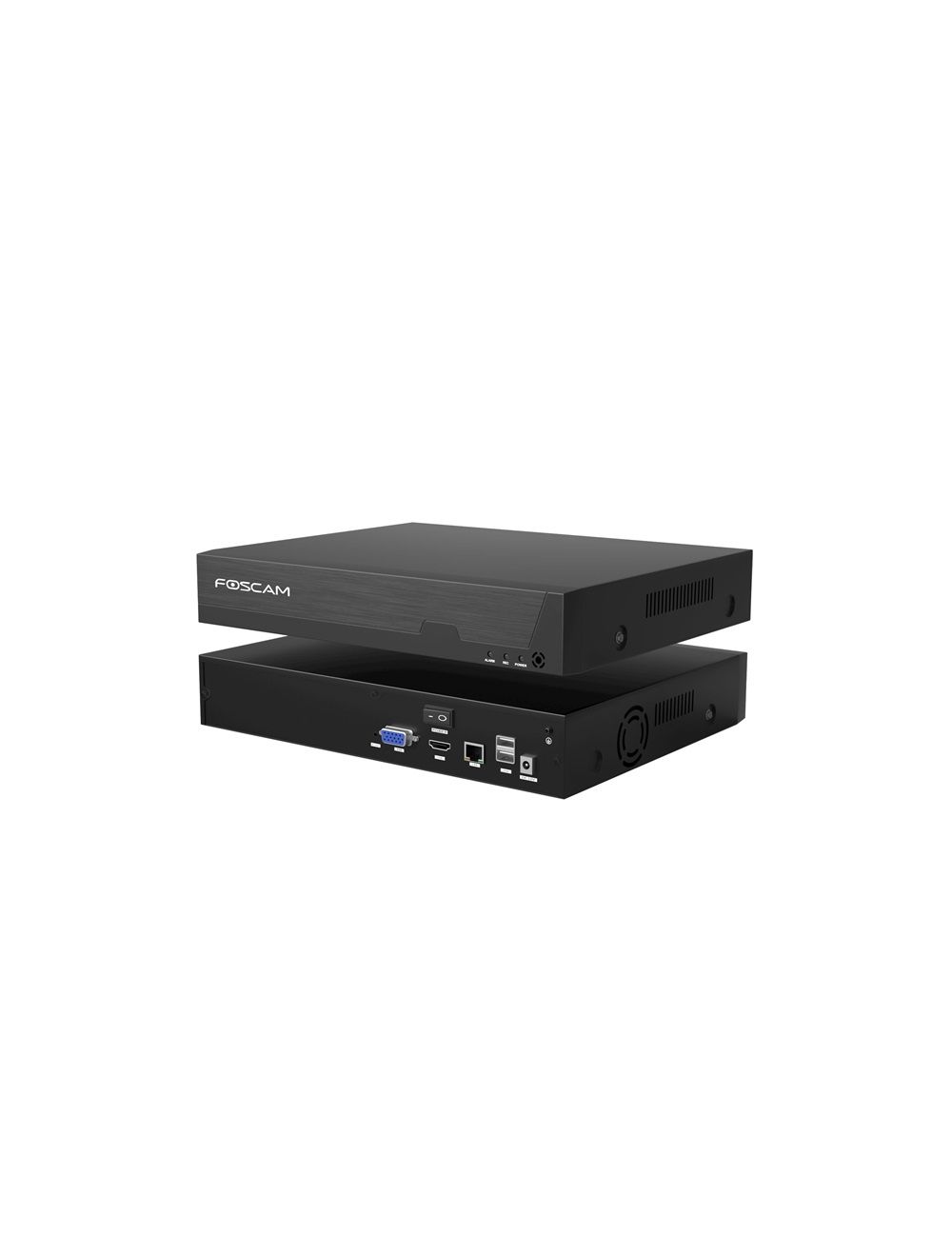

Foscam FNA216H, 16-channel 4K/8MP Network Video Recorder

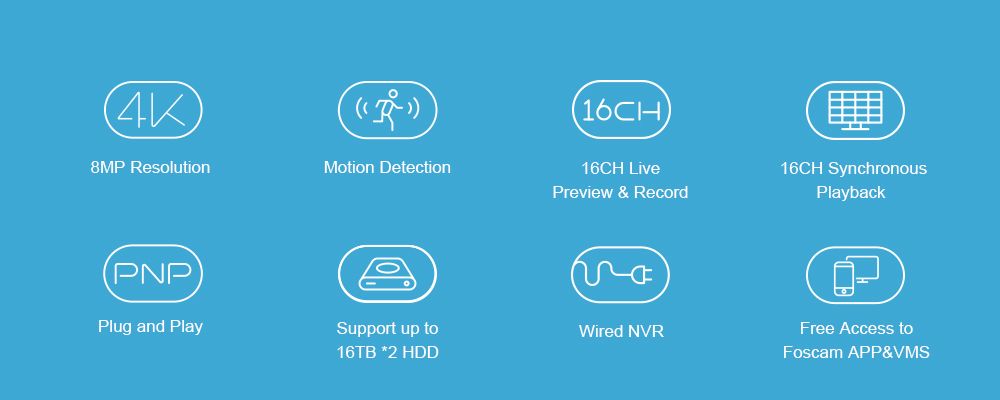

8 MP, motion detection, support up to 16TB HDD (x2), Plug&Play, wired NVR
SKU
FNA216H
Foscam FNA216H
- Supports 16-kanaals 8 MP; FNA216H NVR and Foscam PC App( VMS ) will cooperate to get a better experience
- More efficient streaming, supports video compression H.264+ Codec, for storage and bandwidth savings. Greater efficiency and high quality video preview and recording in low-bit rate

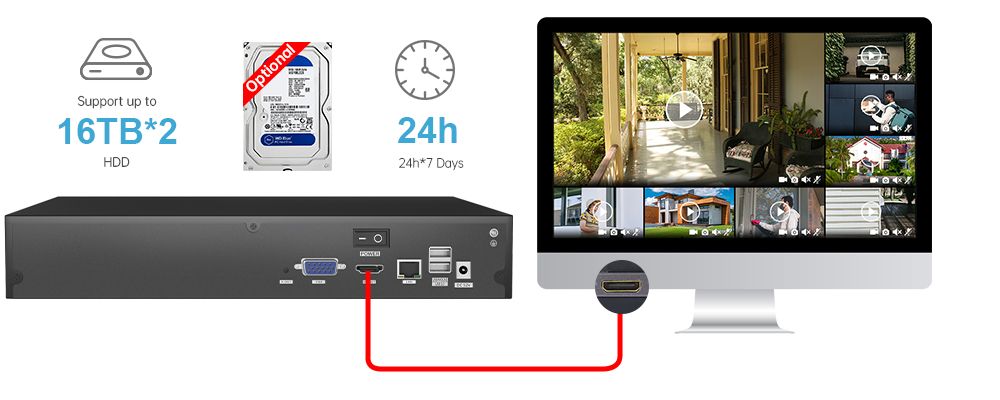

- Never miss a moment! Supports up to 16TB hard drive (2x, not included), for 24/7 continuous recording. Scheduled or motion-triggered recording option allows you to record even longer
- Supports ultra-long continuous 24/7 recording (supports external hard drive up to 16TB*2). The table below shows how long the Foscam NVR can record for 24/7 under different HDD capacity for reference
- Cameras and NVR connect automatically
- Simple installation, Plug&Play
SKU | FNA216H |
---|---|
Brand | Foscam |
EANcode | 6954836054956 |
NVR | Model | FNA216H |
Video input | IP video input | 16 channel UHD IP camera input |
Video output | HDMI Output | 1x HDMI |
VGA Output | 1x VGA | |
Display resolution | 3840x2160, 2560x1440, 1920x1080, 1440x900, 1280x1024, 1280x800, 1280x720, 1024x768 | |
Recording | Recording resolution | Up to 8MP per channel (16-ch @ 8MP) |
Record mode | Time scheduled / Motion detect | |
Compression format | H.264/H.264+ | |
Playback | Synchronous playback | 16 ch synchronous video playback |
Playback mode | Pause / Stop / Slow / Fast / Frame play | |
Network | Network protocol | IP, TCP, UDP, SMTP, DHCP, RTSP |
HDD | Capacity | Up to 16TB x2 |
External interface | Network interface | 1x 10/100/1000 Mbps RJ45 port |
USB interface | 2x USB2.0 interface for mouse and external storage | |
Button | 1x Reset button | |
System requirements | Operating System | Windows (Foscam VMS), Mac OS (Foscam VMS), Android (Foscam app), iOS (Foscam app) |
Smartphone | iOS, Android, 3G/4G/5G smartphones | |
Language | Language | 20 languages |
Physical & environmental | Power supply | DC 12V/4A |
Dimension | 325x242x50 mm | |
Net weight | 1105g | |
Operating temperature | 0°C ~ 50°C | |
Operating humidity | 20% ~ 85% (non condensing) | |
Storage temperature | -20°C ~ 60°C | |
Storage humidity | 0% ~ 90% (non condensing) |
