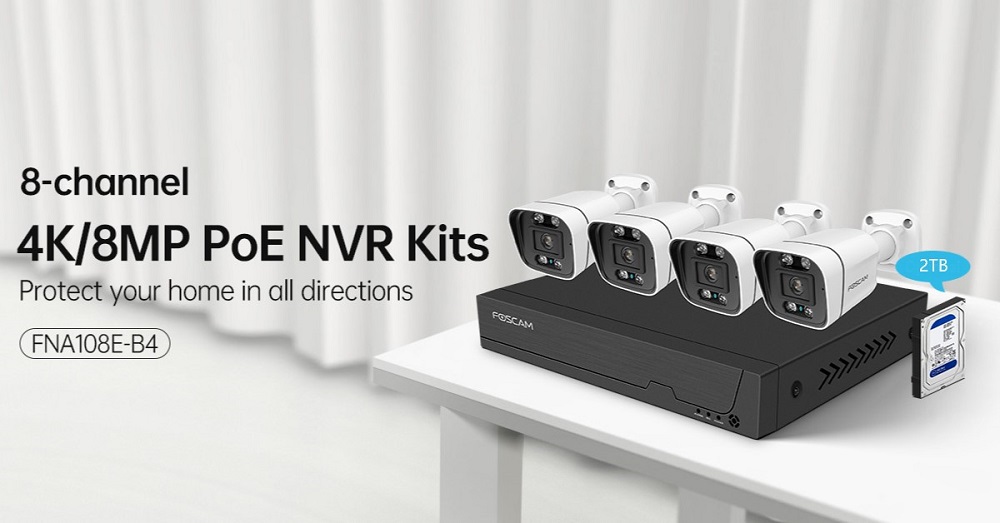

Foscam PoE Kit FNA108E-B4-2T

PoE set consists of NVR FNA108HE and 4x camera Foscam V8EP

SKU
FNA108E-B4-2T-WB

FNA108E-B4-2T

Protect your home in all directions with this 4K/8MP PoE set!



Centralized management

Support viewing, video playback, 7*24 hours non-stop video recording, and keeping an eye on every corner of your home.



Complete protection

Get the whole system for complete protection. After being powered, four cameras will connect to the NVR in the same system automatically and provide your home with complete protection.

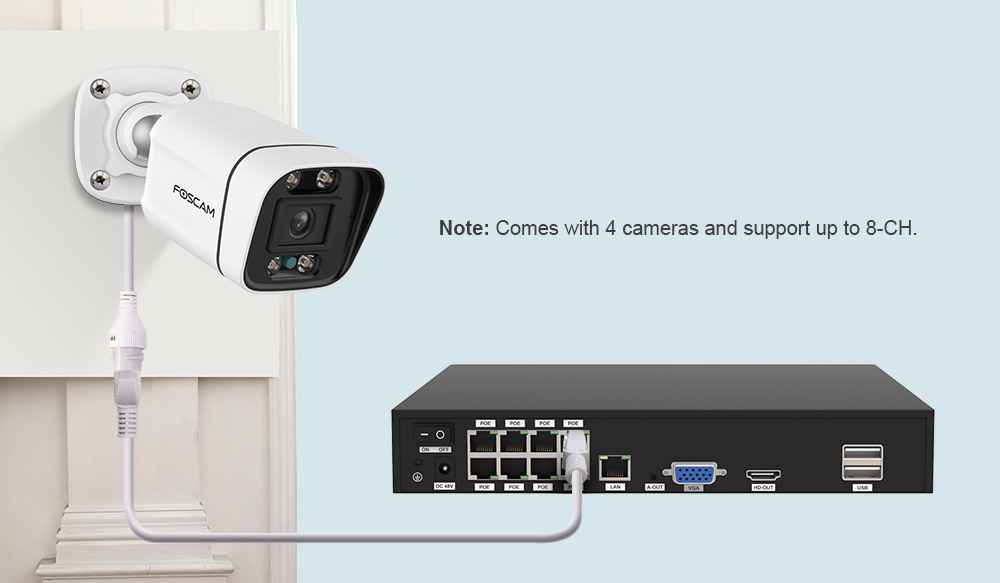

Easy installation

With Power over Ethernet connection, each DIY user can use a single network cable to connect each POE camera to Foscam NVR for both power supply and video recording. Just hook each camera up with the NVR and the whole security system can be seen day and night.



Human/vehicle detection

Say goodbye to the unwanted alarms triggered by moving branches or flying bugs. With advanced human/vehicle detection, the camera identifies true threats in the light of cutting-edge detection algorithms, giving you the utmost peace and relief.



Other features

  • Free use of Foscam app or VMS
  • Supports up to 16TB HDD
  • Plug&Play
  • Sound and light alarm
  • It supports video stream compression H.264+ Codec, which has the advantages of storage and bandwidth savings with greater efficiency and achieves high-quality video preview and recording in low-bit rate

More Information
SKU FNA108E-B4-2T-WB
Brand Foscam
NVR Model FNA108HE
Video input IP video input 8 channel UHD IP camera input
Video output HDMI Output 1x HDMI
VGA Output 1x VGA
Display resolution 3840x2160, 2560x1440, 1920x1080, 1440x900, 1280x1024, 1280x800, 1280x720, 1024x768
Recording Recording resolution Up to 8MP per channel (8-ch@8MP)
Record mode Time scheduled / Motion detect
Compression format H.264/H.264+
Playback Synchronous playback 8 channel synchronous video playback
Playback mode Pause / Stop / Slow / Fast / Frame play
Network PoE Standaard IEEE 802.3at/af
Network protocol IP, TCP, UDP, SMTP, DHCP, RTSP
HDD Capacity Supports up to 16TB
HDD 2TB pre-installed HDD
External interface Network interface 1x 10/100 Mbps RJ45 port
USB interface 2x USB2.0 interface for mouse and external storage
Button 1x power on/off button, 1x Reset button
System requirements OS Windows (Foscam VMS), Mac OS (Foscam VMS), Android (Foscam app), iOS (Foscam app)
Smartphone iOS, Android, 3G/4G/5G smartphones
Language Language 20 languages
Physical & environmental Power supply DC 48V/2A
Dimension 255x238x50 mm
Net weight 880g
Operating temperature 0°C ~ 50°C
Operating humidity 20% ~ 85% (non condensing)
Storage temperature -20°C ~ 60°C
Storage humidity 0% ~ 90% (non condensing)

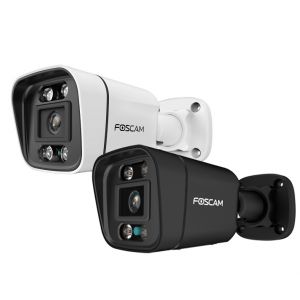

Camera model V8EP
Image Sensor Sensor HD Color CMOS Sensor
Display resolution 8MP (3840*2160)
Min. illumination 0 Lux (met IR verlichting)
Lens Lens Type f:4.3mm,F1.6
Angle of view Horizontal: 90.1°; Vertical: 46.2°; Diagonal : 108.5°
Night mode Automatic or manual modes; when the white light is on, night vision image is colored
Night vision 20m
Audio Input/Output Built-in mic and speaker
Audio compression PCM/AAC
Siren Supports max 100dB alarm siren
System requirements Microsoft Windows (Foscam VMS), Mac OS (Foscam VMS), Android (Foscam app), iOS (Foscam app)
iOS,Android,3G/4G/5G Smartphones
Connectivity Ethernet RJ45
802.3af PoE
Other features Video format H.264/H.264+
Multi stream Dual stream
Motion detection
Human detection
Vehicle detection
Day/night
Zoom 6x digital
HDR
Spotlight
Physical & environmental Power supply Powered by PoE NVR
Power consumption 5 Watt (Max.)
Net weight 342g
Waterproof IP66
Certification FCC, CE, RoHS, IP66
Operating temperature -20°C~ 40°C
Operating humidity 10% ~ 80% non condensing
Storage temperature -20°C ~ 60°C
Storage temperature 0% ~ 90% non condensing

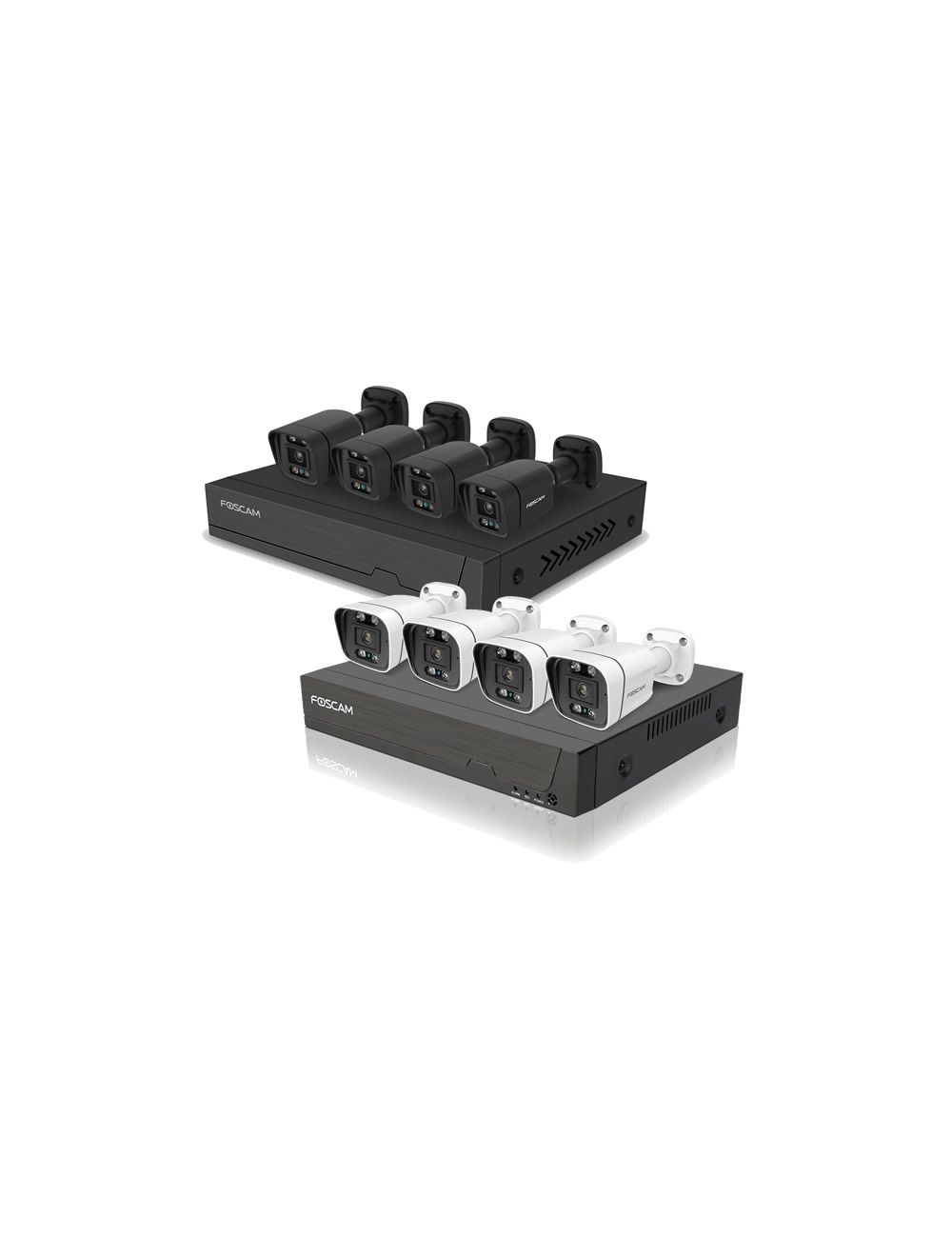

In the box

  • 1x 8-channel NVR
  • 4x IP camera
  • 1x USB mouse
  • 1x pre-installed 2TB HDD
  • 1x power adapter for NVR
  • 1x 1.5m ethernet cable
  • 4x 18m ethernet cable
  • 1x 1.8m HDMI cable
  • 4x screw kit
  • 4x waterproof lid
  • 4x mounting template
  • 1x manual
  • 5x warning card

Dimension camera:
