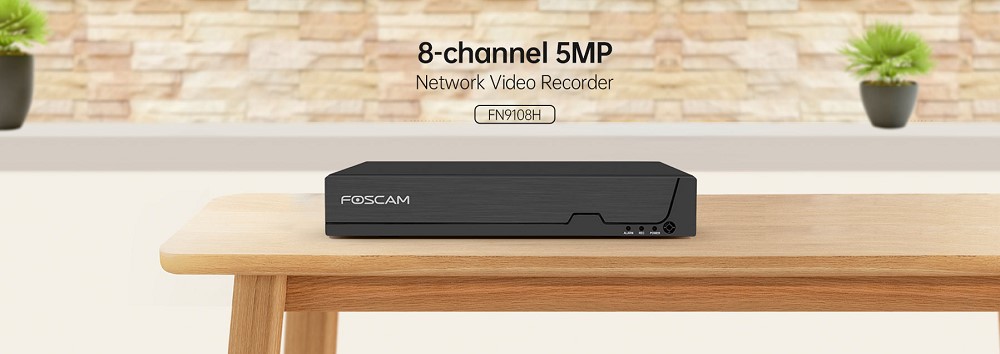

Foscam FN9108H, 8-channel 5MP NVR

Motion detection, support up to 16TB HDD, Plug&Play

Foscam FN9108H

  • Supports 8-channel 5 MP; Foscam VMS and FN9108H NVR will cooperate to get a better experience
  • More efficient streaming, supports video stream compression H.264+ Codec which has advantages of storage and bandwidth savings. Greater efficiency, high quality video preview and recording in low-bit rate

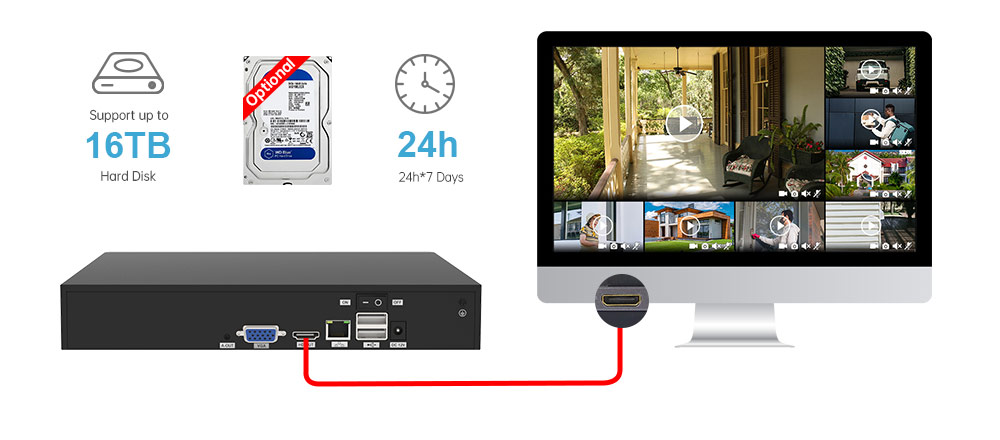

  • Never miss a moment. Supports up to 16TB hard disk (not included), for 24/7 continuous recording. Scheduled or motion-triggered recording allows you to record even longer

  • Cameras and NVR connect automatically
  • Motion detection

More Information
Brand Foscam
EANcode 6954836028766
NVR Model FN9108H
Video input IP video input 8 channel QHD IP camera input
Video output HDMI Output 1x HDMI
VGA Output 1x VGA
Display resolution 3840x2160, 2560x1440, 1920x1080, 1440x900, 1280x1024, 1280x800, 1280x720, 1024x768
Recording Recording resolution Up to 5MP per channel (8-ch@5MP)
Record mode Time scheduled / Motion detection
Compression format H.264/H.264+
Playback Synchronous playback 8 channels synchronous video playback
Playback mode Pause / Stop / Slow / Fast / Frame play
Network Ethernet One 10/100 Mbps RJ45 port
Netwerk protocol IP, TCP, UDP, SMTP, DHCP, RTSP
HDD Capacity Up to 16TB
External interface Network interface 1x 10/100 Mbps RJ45 port
USB interface 2x USB2.0 interface for mouse & external storage
Button 1x Power on/off button, 1x Reset button
System requirements Operating System Windows (Foscam VMS), Mac OS (Foscam VMS), Android (Foscam app), iOS (Foscam app)
Smartphone iOS, Android, 3G/4G/5G smartphones
Language Language 17 languages
Physical & environmental Power supply DC 12V/2A
Dimension 255x238x50 mm
Weight 780g
Operating temperature 0°C ~ 55°C
Operating humidity 20% ~ 85% (non-condensing)
Storage temperature -20°C ~ 60°C
Storage humidity 0% ~ 90% (non-condensing)
