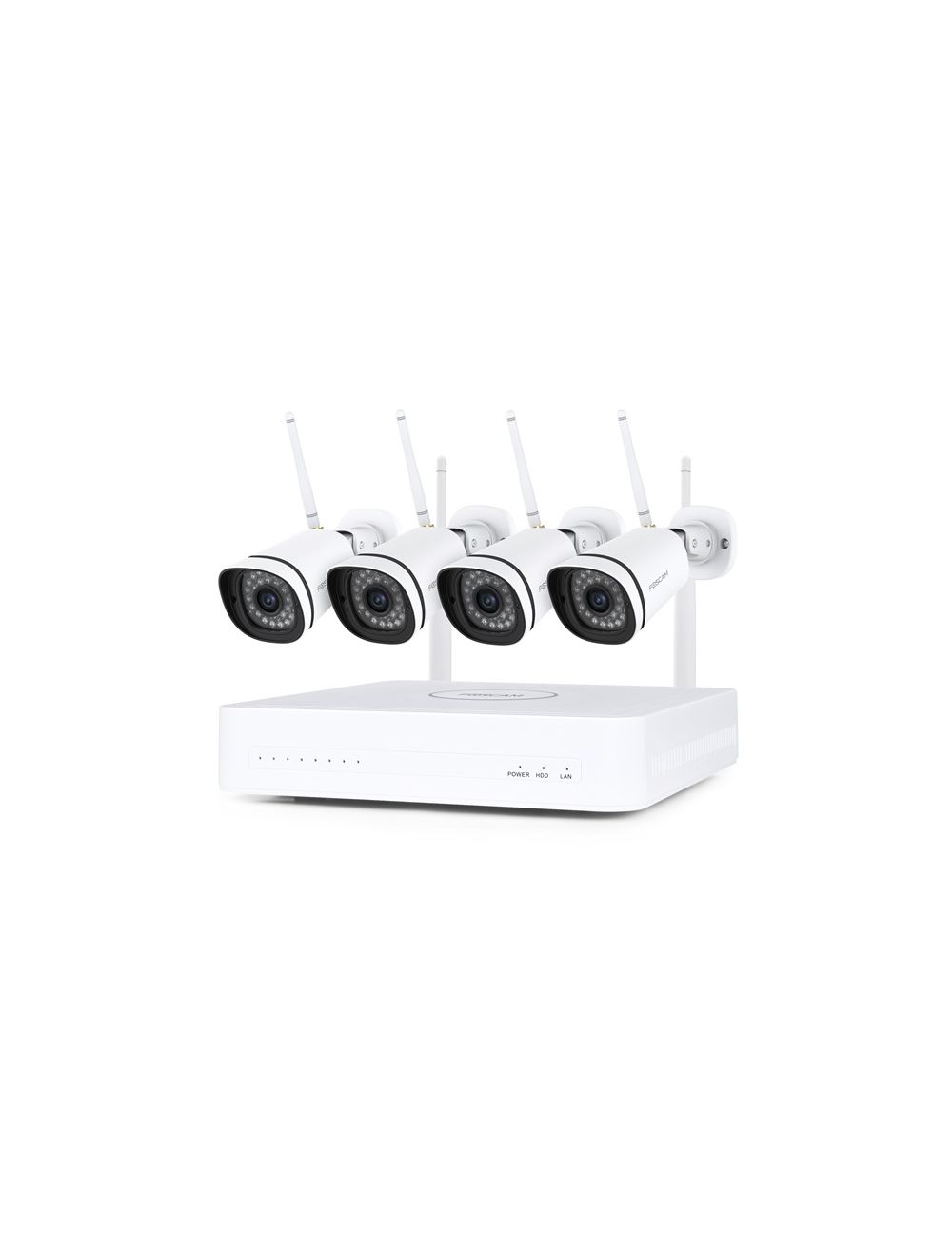

Foscam FN8108W-B4-1T, 2K/3MP 8-channel WiFi security kit
Set consists of 1 NVR (FN8108W) & 4 cameras (FI9911W). 1TB pre-installed HDD
Foscam FN8108W-B4-1T
2K/3MP WiFi NVR security set. With this set you get 4 WiFi cameras (FI9911W) and an NVR. You can expand the set to 8 cameras and you can choose from most Foscam cameras, both WiFi and PoE, in addition to the FI9911W.
Complete protection
Get the whole system for complete protection. After being powered, four cameras will connect to the NVR in the same system automatically and provide your home complete protection.
Mount it anywhere you like
Enjoy all the advantages of wireless security system, such as flexible mounting positions, easier wiring works and less drilling or screws.
Easy connection
Have a larger home with WiFi dead zones? Thanks to Mesh network solution, each camera serves as a hop point for other cameras in the system and connect in series. This helps the cameras to deliver a strong WiFi signal as they are connecting to other cameras and not relying on one-to-one communications with the NVR. It allows the network to cover a range up to 300 meters if there’s no obstructions.
Note: Only one optimal route will be automatically selected. For example, if one IPC is connected to NVR, it will not be connected to another IPC
High performance night vision camera
Long night vision distance (tot 20 meter), which enables clear video evidence of theft or intrusion that occur in low-light environment.
More efficient streaming, optimum viewing experience
|
Newer video stream compression H.264+ Codec, which has advantages of storage and bandwidth savings with greater efficiency. Achieve high quality video preview and recording in low bit rate.
|
 |
 |
|
| SKU | FN8108W-B4-1T |
|---|---|
| Brand | Foscam |
| EANcode | 6954836023044 |
| NVR | Model | FN8108W | |||||
|---|---|---|---|---|---|---|---|
| Video Input | IP Video Input | 8-channel IP camera input | |||||
| Video Output | HDMI Output | 1×HDMI | |||||
| VGA Output | 1×VGA | ||||||
| Display resolution | 3840x2160, 2560x1440, 1920x1080, 1440x900, 1280x1024, 1280x800, 1280x720, 1024x768 | ||||||
| Recording | Recording resolution | Up to 8MP per channel (8ch@8MP ) | |||||
| Recording mode | Time scheduled / Human detect | ||||||
| Compression format | H.264+ | ||||||
| Playback | Synchronous playback | 8 channel simultaneous video playback | |||||
| Playback mode | Pause / Stop / Fast / Slow / Frame play | ||||||
| Network | Ethernet | One 10/100Mbps RJ45 port | |||||
| Mesh | √ | ||||||
| Wireless standard | IEEE802.11b/g/n | ||||||
| Wireless security | WPA, WPA2 | ||||||
| Network Protocol | IP, TCP, UDP, SMTP, DHCP | ||||||
| HDD | Capacity | 1TB pre-installed hard drive; Support up to 8TB |
|||||
| External interface | Network interface | 1× 10/100 Mbps RJ45 port | |||||
| USB interface | 2× USB2.0 interface for mouse & external storage | ||||||
| Button | 1× reset button | ||||||
| Software | Smart phone | iOS, Android, 3G/4G/5G Smartphones | |||||
| Language | Languages | 20 | |||||
| Physical & environmental | Power supply | DC 12V/2A | |||||
| Dimension (L x W x H) | 234 x 234 x 52mm | ||||||
| Net weight (g) | 660g | ||||||
| Operating temperature | 0°C~50°C | ||||||
| Operating humidity | 20%~85% (non-condensing) | ||||||
| Storage temperature | -20°C~60°C | ||||||
| Storage humidity | 0%~90% (non-condensing) | ||||||

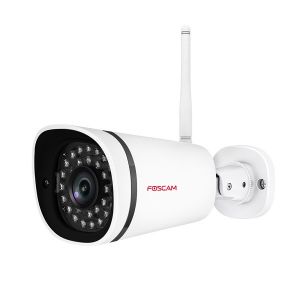

| Camera | Model | FI9911W | |||||
| Image sensor | Sensor Type | High definition color CMOS sensor | |||||
| Video quality | 3MP (2304x1296) | ||||||
| Backlight compensation | √ | ||||||
| Lens | Lens type | f:4mm, F:2.0 | |||||
| IR range | 20 meter | ||||||
| Infrared Mode | Automatic | ||||||
| Diagonal view angle | 94° | ||||||
| Network | Mesh | Each IP camera as a WiFi relais | |||||
| Wireless standard | IEEE802.11b/g/n | ||||||
| Data rate | IEEE802.11b: 11Mbps(Max.); IEEE802.11g: 54Mbps(Max.); IEEE802.11n: 150Mbps(Max.). |
||||||
| Wireless security | WPA, WPA2 | ||||||
| Network Protocol | IP, TCP, UDP, NTP, DHCP, RTSP | ||||||
| System requirements | OS | Microsoft Windows (Foscam VMS), Mac OS (Foscam VMS), Android (Foscam app), iOS (Foscam app) | |||||
| SmartPhone | iOS, Android, 3G/4G/5G smartphones | ||||||
| Software features | Video formaat | H.264+ | |||||
| Multi-Stream | Dual stream | ||||||
| Human detection | √ | ||||||
| Day/night | √ | ||||||
| Physical & environmental | Waterproof | IP66 | |||||
| Net weight | 370g | ||||||
| Power | DC12V | ||||||
| Power consumption | <5W | ||||||
| Dimension (L x W x H) | 97(L) x 67(W) x 64(H) | ||||||
| Certification | FCC, CE, IP66 | ||||||
| Operating temperature | -10°C~55°C | ||||||
| Operating humidity | 10%~80% (non-condensing) | ||||||
| Storage temperature | -20°C~60°C | ||||||
| Storage humidity | 0%~90% (non-condensing) | ||||||
