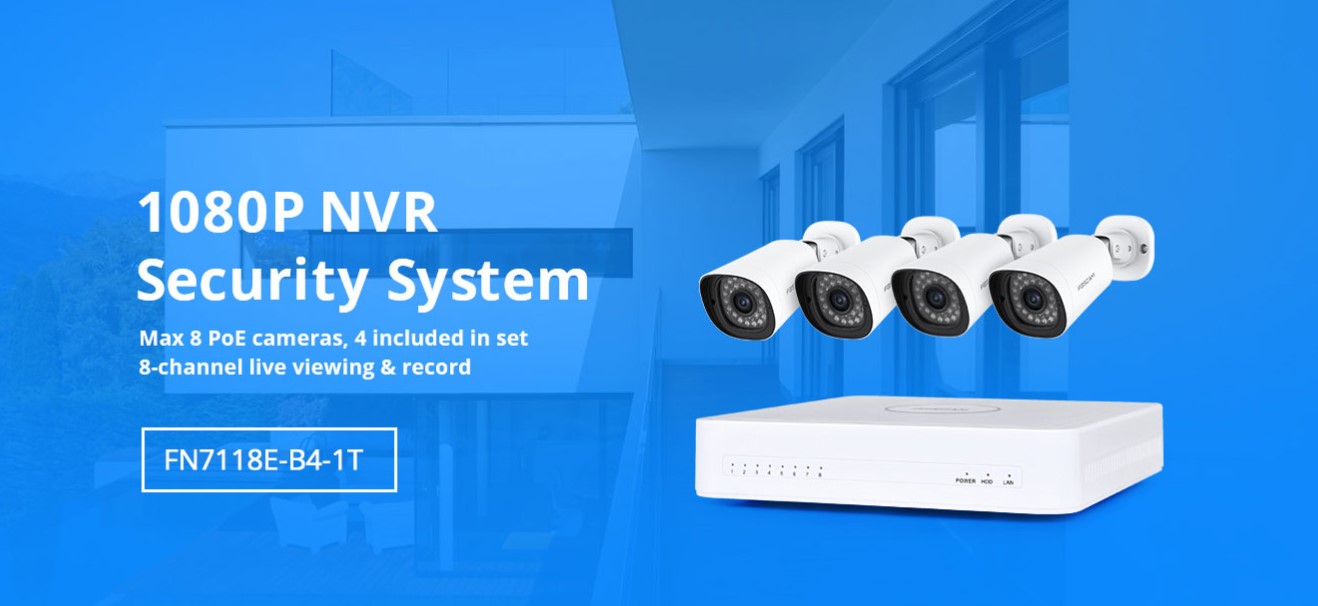

Foscam FN7118E-B4-1T, complete PoE security system
Easy wiring
PoE technology makes cabling much easier by providing power through network cable that connects camera to NVR. Standard PoE supports connection of any ONVIF compliant camera, which is wonderful for DIY a unique security system.
Complete protection
After being powered, four cameras will connect to the NVR in the same system automatically and provide your home complete protection.

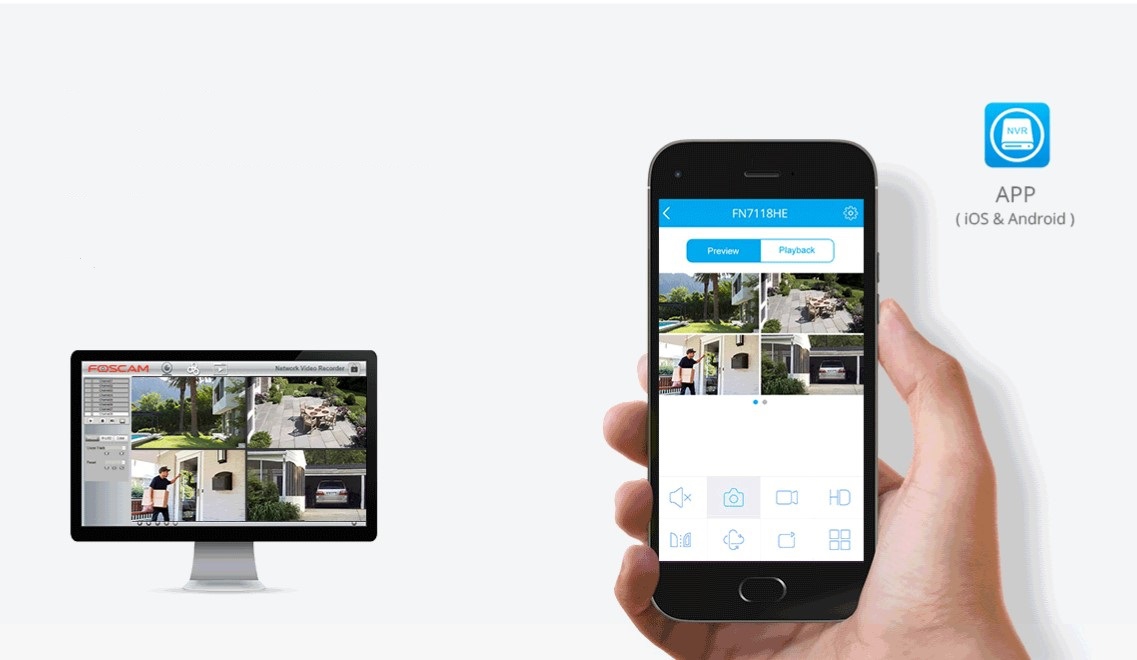

Multiple access
View and control your security system locally by connecting the system to a monitor, or via major browsers such as IE and Safari, or via iOS & Android APP on mobile devices remotely.

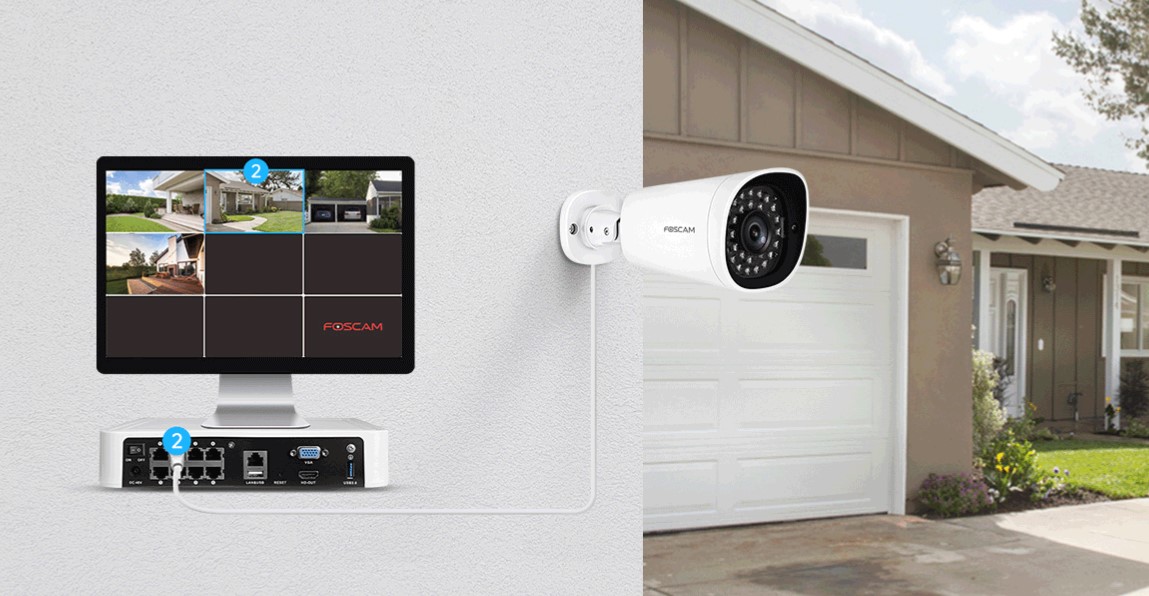

Match camera to a certain split screen
Designate outstanding display split screen for a camera, which makes it convinient for you to check the location deserving special attention.

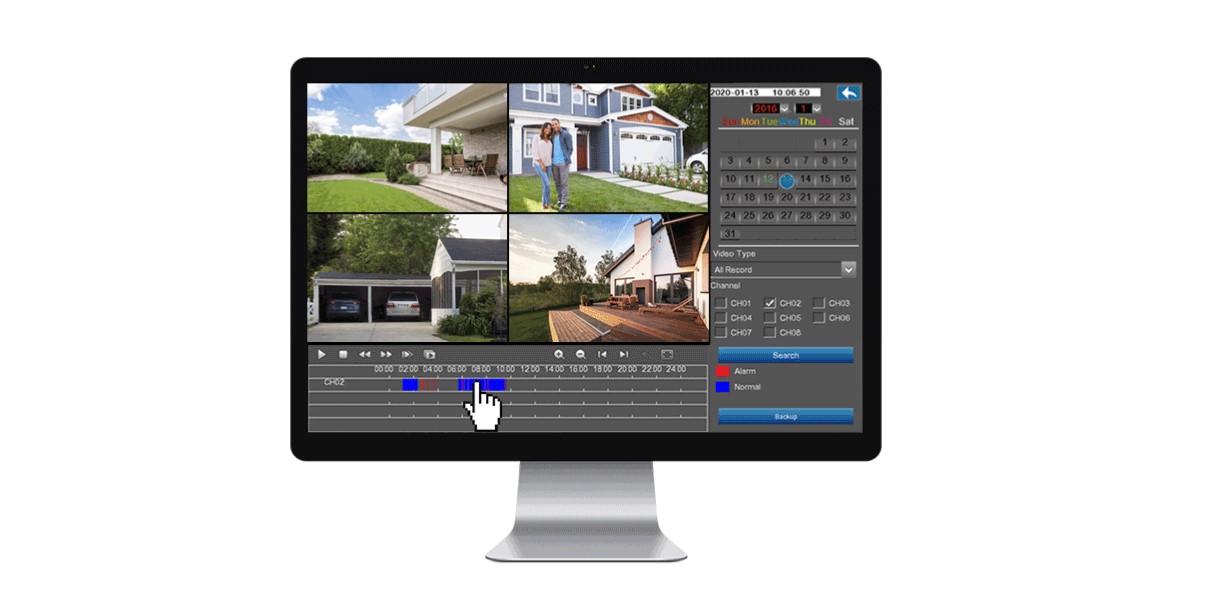

4-channel timeline playback
Playback the video footage on 4 channels simultaniously to get the whole event under control. Intelligent timeline allows you to go back to different days, hours or minutes and see everything you missed.
Unfailing 24/7 recording & Quick data back-up

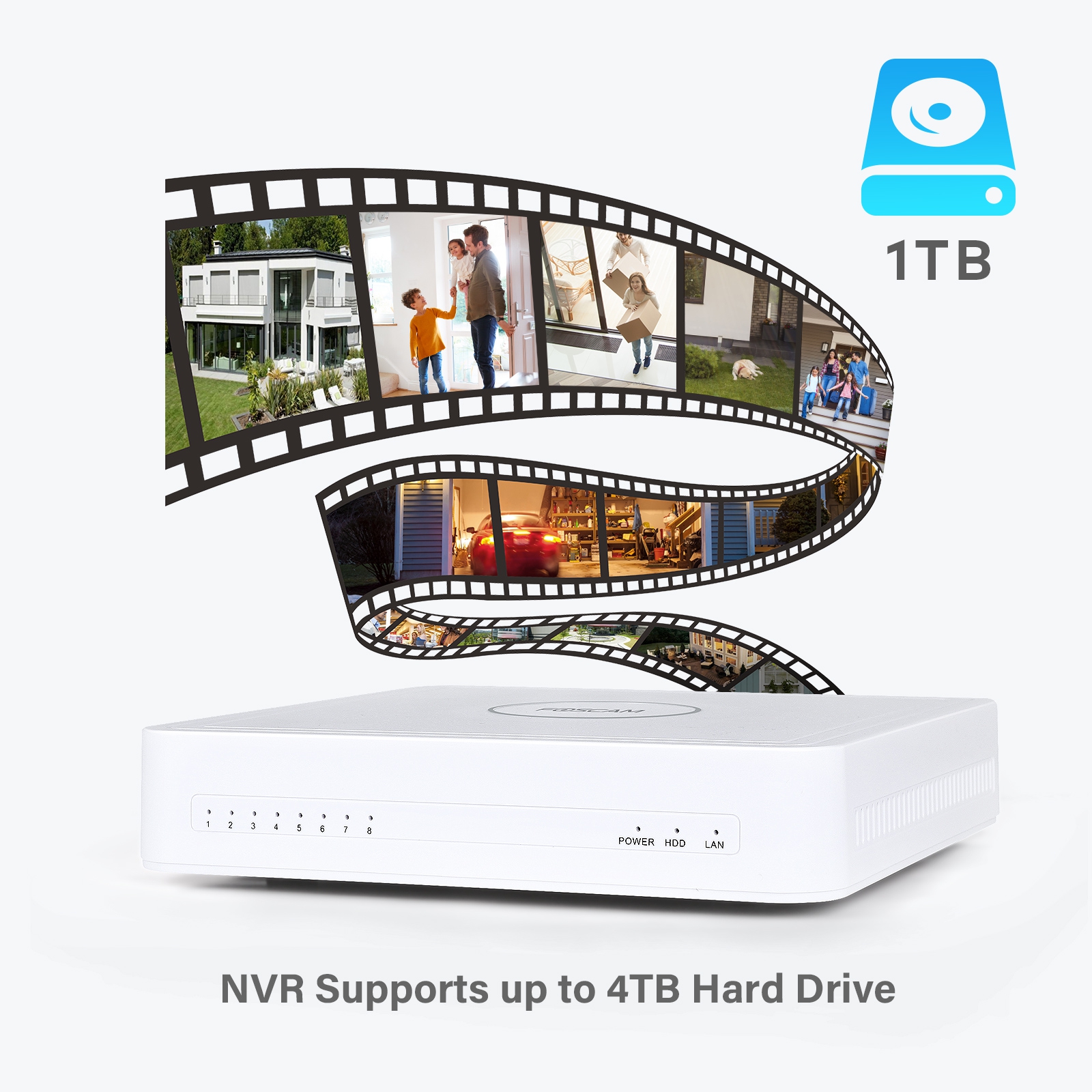

- 1TB hard drive is installed for 24/7 recording. NVR supports up to 4 TB hard drive
- Use USB3.0 back-up feature to transfer your data to external storage device

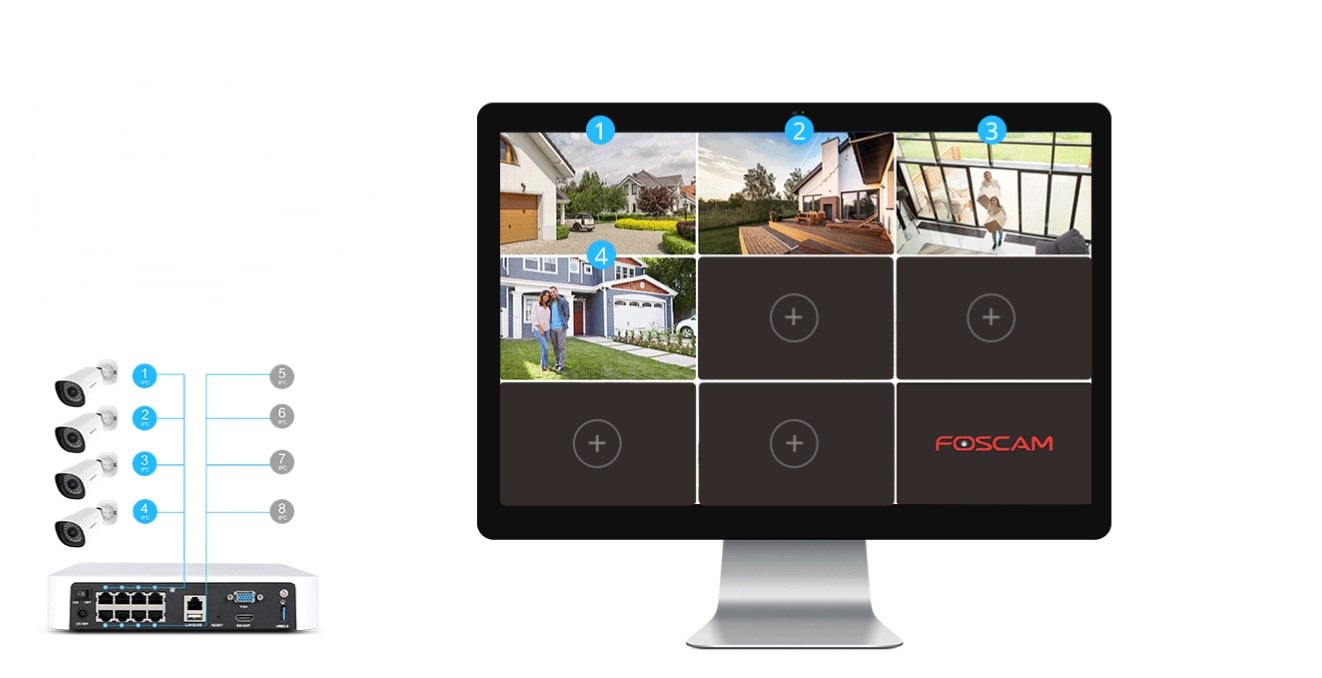

Extendable design for future demand
FN7118E-B4-1T is composed of 8-ch NVR and four cameras. Four additional IP-cameras can be added to the system when necessary.
| SKU | FN7118E-B4-1T |
|---|---|
| Brand | Foscam |
| EANcode | 6954836095874 |
| NVR Kit | FN7118E-B4-1T | |
|---|---|---|
| NVR | Model | FN7108HE |
| Video Input | IP Video Input | 8 ch HD IP camera input |
| Video Output | HDMI Output | 1x HDMI |
| VGA Output | 1x VGA | |
| Display Resolution | 1920×1080/60Hz, 1280×720/60Hz,1440×900/60Hz, 1024×768 /60Hz | |
| Recording | Recording resolution | 1080P per channel ( 8-ch@1080P ) |
| Recording mode | Manual/Scheduled/Motion detect | |
| Compression format | H.264 | |
| Playback | Synchronous playback | 4 channel 1080P synchronous video playback |
| Playback mode | Fast forward/Fast backward/Frame forward/Slow Play | |
| HDD | HDD | 1TB (pre-installed) |
| Capacity | Up to 4TB | |
| External Interface | Network Interface | One 10/100/1000 Mbps RJ45 port |
| USB Interface | One USB2.0/ one USB3.0 interface for mouse & external storage | |
| Button | One Power on/off button, one reset button | |
| Software | Computer operating system | Microsoft Windows XP, 7, 8, 8.1, Mac OS |
| Internet viewing | Microsoft IE8 >, Firefox, Safari | |
| Smartphone | iOS, Android, 3G/4G Smartphones | |
| Language | Language | 13 |
| Physical & environmental | Power Supply | DC 48V & 2A |
| Dimensions (LxWxH) | 234 x 234 x 52mm | |
| Net weight (g) | 1200g | |
| Operating temperature | -10°C~55°C | |
| Operating humidity | 20%~85% (non-condensing) | |
| Idle temperature | -20°C~60°C | |
| Idle humidity | 0%~90% (non-condensing) | |
| Camera | Model | FI9912EP |
| Image sensor | Sensor Type | 1/2.7" CMOS |
| Display resolution | 2MP (1920x1080) | |
| Lens | Lens Type | f:4.0mm; F:2.0 |
| Night Vision | 20 meters | |
| Infrared mode | Automatic or manual | |
| Diagonal angle of view | 105° | |
| Horizontal angle of view | 89° | |
| Connectivity | 802.3af PoE | v |
| Ethernet | RJ45 | |
| Software features | Video format | H.264 |
| Multi Stream | Dual stream | |
| Storage | Micro SD card (max 128GB), local, NVR, FTP & Cloud storage | |
| Motion Detection | v | |
| Day & Night | v | |
| Physical & environmental | Waterproof | IP66 |
| Net weight | 370g | |
| Power supply | DC 12V | |
| Power consumption | < 5W | |
| Dimensions (LxWxH) | 98x65x62mm | |
| Operating temperature | -10°C~60°C | |
| Operating humidity | 10% ~ 80% (non-condensing) | |
| Storage temperature | -20°C~60°C | |
| Storage humidity | 0%~90% (non-condensing) |
