Foscam FN7108W-B4-N, 2MP Full HD WiFi security camera system

Set consists of 1 NVR (FN7108W) & 4 cameras (FI9910W). No pre-installed HDD, support up to 6TB


Foscam FN7108W-B4-N

Complete protection

After being powered, four cameras will connect to the NVR in the same system automatically and provide your home complete protection



Mount it anywhere you like

Enjoy all the advantages of this wireless security system, such as flexible mounting positions, easier wiring works and less drilling or screws.

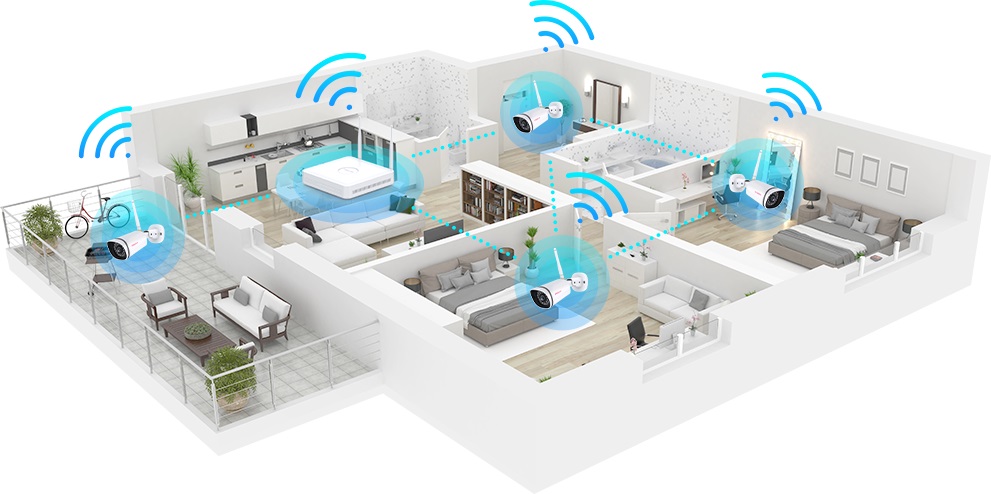

Easy connection

Thanks to Mesh network solution, each camera serves as a hop point for other cameras in the system and connect in series. This helps the cameras to deliver a strong Wi-Fi signal as they are connecting to other cameras and not relying on one-to-one communications with the NVR. It allows the network to cover a range up to 300 meters if there’s no obstructions.

* Only one optimal route will be automatically selected. For example, if one IPC is connected to NVR, it will not be connected to another IPC.



High performance night vision

30pcs infrared LEDs enable long night vision distance (up to 20m), which enables clear video evidence of theft or intrusion that occur in low-light environment.

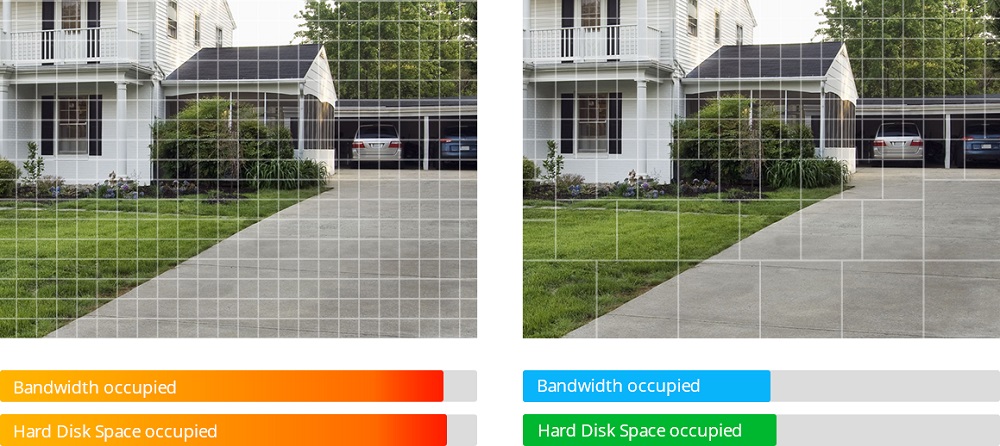

More efficient streaming for optimum viewing experience

Newer video stream compression H.264+ Codec, which has advantages of storage and bandwidth savings with greater efficiency, achieve high quality video preview and recording in low-bit rate





Product details


More Information
SKU FN7108W-B4-N
Brand Foscam
EANcode 6954836048160
NVR Model FN7108W
Video Input IP Video Input 8 channels FHD IP camera input
Video Output HDMI Output 1×HDMI
VGA Output 1×VGA
Display resolution 1920x1080, 1440x900,1280x1024,1280x720,1024x768
Recording Recording resolution 1080P per channel (8ch@1080P )
Record mode Time scheduled / Human Detect
Compression format H.264+
Playback Synchronous playback 8 channel 1080P synchronous video playback
Playback mode Pause / Stop / Fast / Slow / Frame play
Network Ethernet One 10/100Mbps RJ45 port
WiFi standard IEEE802.11b/g/n
WiFi security WPA, WPA2
Network Protocol IP, TCP, UDP, SMTP, DHCP, RTSP
HDD Capacity No pre-installed HDD;
Support up to 6TB
External interface Network interface 1× 10/100 Mbps RJ45 port
USB interface 2× USB2.0 interface for mouse & external storage
Button 1× reset button
Software Smart phone iOS, Android, 3G/4G Smartphones
Physical & environmental Power Supply DC 12V/2A
Dimension (L x W x H) 234 x 234 x 52mm
Net weight (g) 660g
Operating temperature 0°C~55°C
Operating humidity 20%~85% (non-condensing)
Storage temperature -20°C~60°C
Storage humidity 0%~90% (non-condensing)
Camera Model FI9910W
Image sensor Sensor Type 1/2.7" CMOS
Video quality 1080P (1920x1080)
Backlight compensation
Lens Lens type f:4mm, F:2.0
IR range 20 meter
Infrared Mode Automatic
Diagonal view angle 94°
Network Mesh Each IP camera as a WiFi relay
Wireless standard IEEE802.11b/g/n
Data rate IEEE802.11b: 11Mbps(Max.);
IEEE802.11g: 54Mbps(Max.);
IEEE802.11n: 150Mbps(Max.).
Wireless security WPA, WPA2
Network Protocol IP, TCP, UDP, NTP, DHCP, RTSP
Software features Video formaat H.264+
Multi-Stream Dual stream
Human detection
Physical & environmental Waterproof IP66
Net weight 360g
Power DC12V
Power consumption <5W
Dimensions 97(L) x 67(W) x 64(H)
Certification FCC, CE, IP66
Operating temperature -10°C~55°C
Operating humidity 10%~80% (non-condensing)
Storage temperature -20°C~60°C
Storage humidity 0%~90% (non-condensing)
