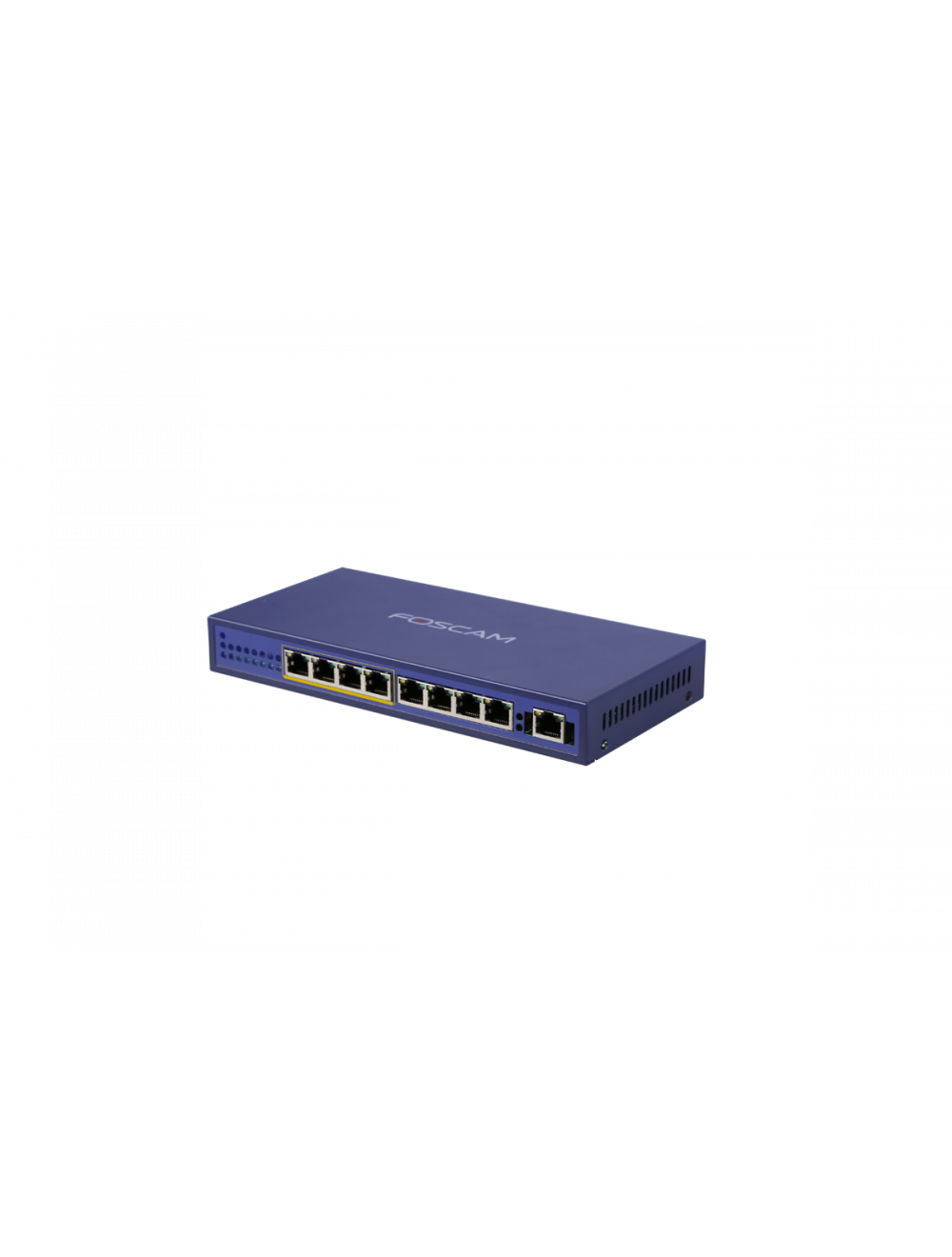

Foscam PS108 - 8 port POE Switch

This PoE switch provides power and data from a single port, using Power over Ethernet (PoE) over a single ethernet cable. PS108 can be used for any 10/100Mbps link and standard IEEE 802.3af power supply products. Advanced auto-sensing algorithm gives power to 802.3af end devices. In addition, the PoE switch automatically determines PoE requirements, speed, duplex. Easy to operate and reliable.
  • Fully IEEE 802.3af Compliant
  • 15.4W for each PoE Port
  • 10/100Mbps
  • 4 PoE Ethernet Ports
  • 5 Standard Ethernet Ports
More Information
Brand Foscam
EANcode 6954836010808
Network Protocols IEEE802.3i 10BASE-T, IEEE802.3u 100BASE-TX
IEEE802.3x Flow Control, IEEE 802.3af PoE
PoE Power 15.4W per port (IEEE802.3af)
Wiring: Data & power provided over pairs 1/2(+) and 3/6(-)
Cable: UPT cat. 5 or higher
Processing types Store-and-forward
Half-duplex back pressure and IEEE802.3x full-duplex control
Buffer memory 48Kb embedded memory per unit
Network latency Less than 20us for 64-byte frames in Store-and-forward mode
Power input 48VDC input
PoE power consumption 15.4W
PoE transmission distance 100 meters maximum
Casing Metal case
Dimension 215 x 106 x 33mm (L x W x H)
Weight 0.53 KG
Installation Desktop or Rack mounting
Port 9 Ports
4 PoE Ports + 4 normal Ethernet Ports + 1 Uplink Ethernet Port
LED indicators System: Power
Per Port: Link, Activity, Speed, PoE activity, PoE error
Environment specification
Operating temperature -10 - 35 degrees C
Storage temperature -20 - 70 degrees C
Operating humidity 10% - 90% relative humidity, non-condensing
Storage humidity 5% - 95% relative humidity, non-condensing
Regulatory Approval
Safety CE, RoHS
Warranty 1 year
