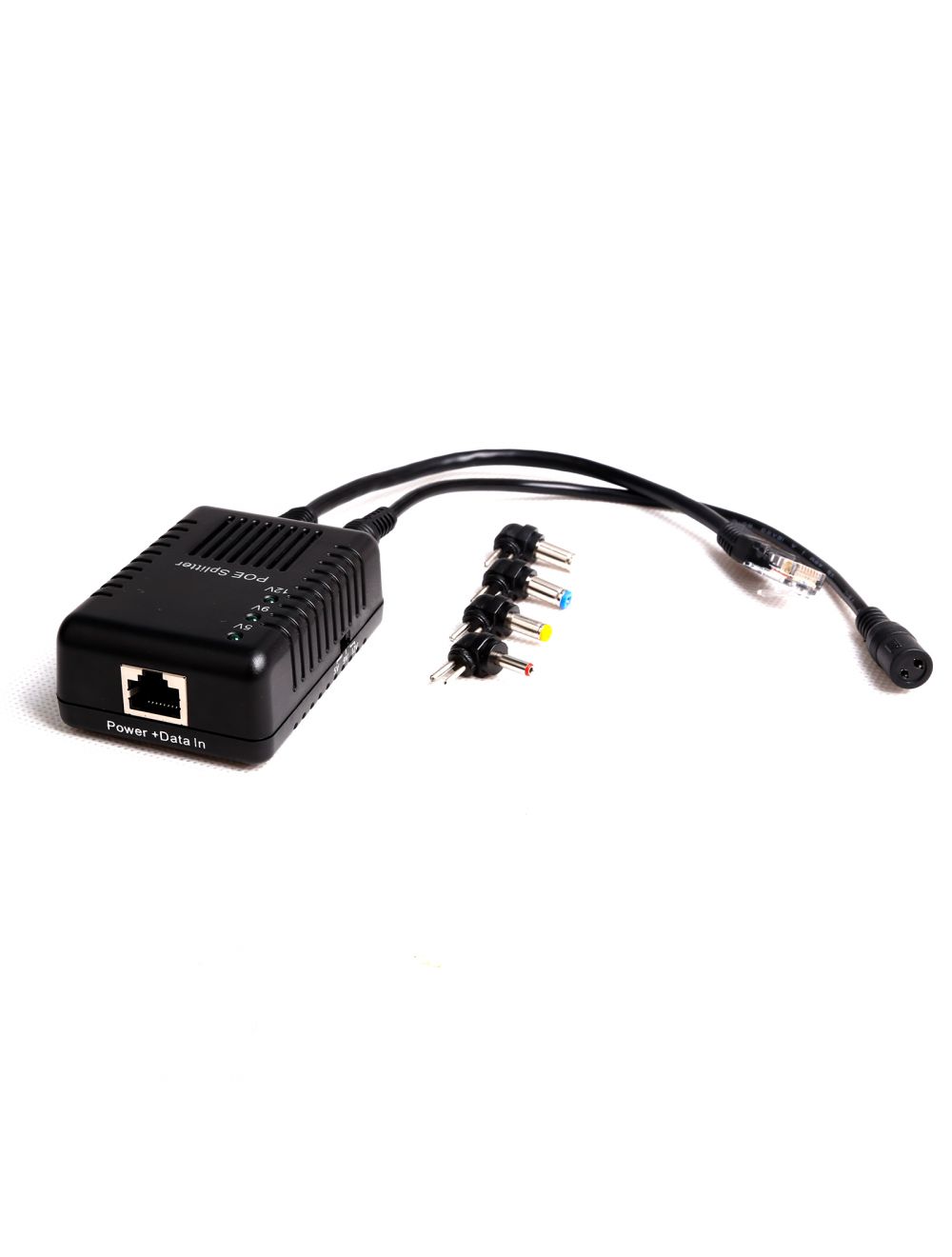

Foscam POE5912 splitter
POE5912 splitter POE splitter
SKU
POE5912G
POE5912 POE splitter
Power Output: 5V,9V,12V
IEEE 802.3af
| SKU | POE5912G |
|---|---|
| Brand | Foscam |
| EANcode | 6954836090589 |
| Model | PoE5912 |
| Transmission Rate | 10/100 Mbps |
| Regulatory | IEEE 802.3at IEEE 802.3af |
| Input Power Voltage | 48Vdc/0.3A |
| Output Voltage | 5V(2A),9V(1.1A),12V(1A) |
| Connector | Shielded RJ-45, EIA 568A and 568B |
| PoE pin definition | 1/2(+), 3/6(–) or 4/5(+), 7/8(-) |
| Protection Design | Safeguards network device with short circuit protection |
| Dimension | 80 mm x 55 mm x 31 mm |
| DC Power Plug | DC 5.5*2.5*12 mm (White) / 5.5*2.1*12 mm (Blue) / 4.8*1.7*12mm (Yellow) / 3.5*1.3*12mm (Red) |
| Jumper Cable | DC 2.1x5.5x 9.5mm, (L-300mm) |
| Operating Humidity | -10 to 45°C |
| Weight | 76g |
| Certification | CE, FCC, RoHS, EN 60950:2006 |
